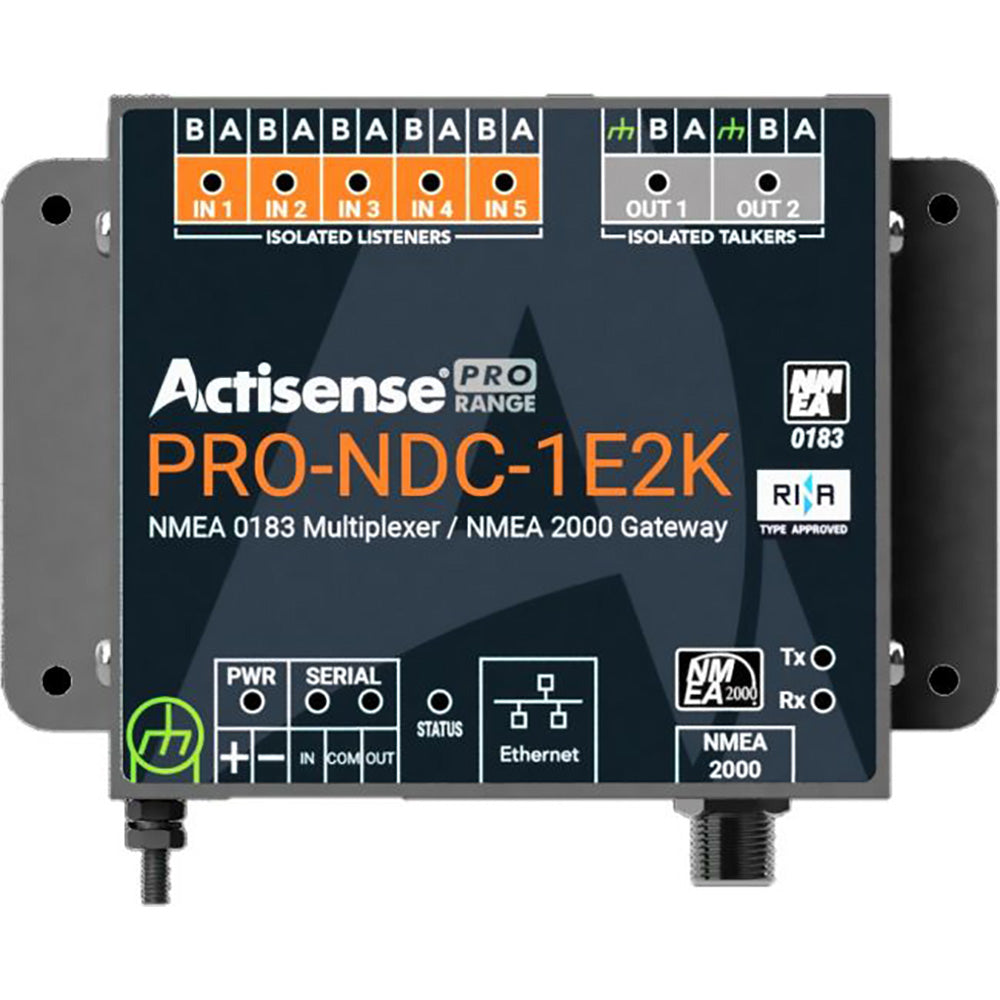

PRO NMEA 0183 Multiplexer/NMEA 2000 Gateway
Interconnectivity, reimagined!
The PRO-NDC-1E2K is much more than an NMEA 0183 Multiplexer…
Rugged, Robust, Type Approved Multiplexer with built-in NMEA 2000 connectivity, high-speed Ethernet streaming of data, flexible configuration, auto-switching and sentence level filtering.
Managing and routing your NMEA data is straight forward, hassle free using the PRO-NDC-1E2K
Features:
Auto-switching between inputs to allow for a primary, secondary, tertiary priority input.
Configurable baud rates to allow 38400 and 4800 baud devices to operate through the same multiplexer.
Sentence filtering to block unwanted sentences from specific outputs helps to limit bandwidth consumption.
Easy to configure using the web based UI, no need to manually enter and edit strings of text.
RINA type approved device means the multiplexer is fit for leisure, commercial and class / type installations.
Multiple LED’s allow for ‘quick glance’ diagnostics to ensure everything is operating correctly.
Certified NMEA 2000 device connectivity allows for conversion and output of data onto NMEA 2000 network.
Bi-directional conversion to and from N2K Network allows for seamless integration between legacy and new equipment.
NMEA 0183 data streaming over Ethernet enables connectivity to existing Ethernet devices and systems.
NMEA 2000 data streaming over Ethernet.
5 OPTO-Isolated NMEA 0183 inputs and 2 ISO-Drive NMEA 0183 outputs provide protection for all connected instruments.
Type-approved (RINA).
NMEA 0183 Ethernet streaming
NMEA 2000 Ethernet streaming
NMEA 2000 output via M12
5x Configurable Opto-isolated NMEA 0183 inputs.
2x Configurable ISO-Drive isolated NMEA 0183 outputs.
1x Bi-directional, configurable, isolated serial port.
Automatic baud rate matching on inputs.
Advanced data filtering / routing.
Free firmware updates making the device future-proof.
Diagnostic LEDs on all inputs and outputs.
Bi-colour status LED.
Panel mountable.
Stainless Steel housing for added durability
Quick and easy to install
Configuration using standard web browser, no PC operating system compatibility issues
Advanced features solve NMEA 0183 data routing problems
Fully isolated with ISO-Drive technology for peace of mind
Easy firmware updates make the device future-proof
Type Approved (RINA)
Technical Specifications:
Power Supply
Input supply voltage - 9 to 35 V DC
Input supply current - 150mA max @ 12V DC (all outputs @ full drive into 100 ohm loads)
Input protection - Continuous reverse polarity, transient overvoltage and ESD protection
Power indicator - LED, Blue – indicates unit is functioning correctly
Input Supply connector - Pluggable 2-way screw terminal, 5.08mm pitch (12 to 30 AWG)
NMEA 0183 Port – Listener & Talker
Number of Listener / Input Ports - 5 isolated NMEA 0183 Listeners
Number of Talker / Output Ports - 2 isolated NMEA 0183 Talkers
Compatibility - Fully NMEA 0183, RS422 & RS232 compatible. RS485 Listener compatible
Speed / baud rate - 4800 to 38400 bps
Talker Output Voltage Drive - >= 2.2V (differential) into 100 ohm
Talker Output Current Drive - 20 mA maximum per output
Talker Output Protection - Short circuit and ESD
Talker Data Indicator - LED, Orange (Flashes with data rate)
Listener Input Voltage Tolerance - -15 V to +15 V continuous, -35 V to +35 V short term (< 1 second)
Listener Input Protection - Current limited, overdrive protection to 40 VDC and ESD protection
Listener Data Indicator - LED, Green (Flashes with data rate)
Connectors - Pluggable 2/3 way screw terminals, 5.08mm pitch (12 to 30 AWG)
Serial Port
Compatibility - RS422 & RS232 compatible. RS485 Listener compatible
Speed / baud rate - 115200 bps
Output voltage drive - >= 2.1V (differential) into 100 ohm
Output current drive - 20 mA max.
Output protection - Short circuit and ESD
Input voltage tolerance - -15 V to +15 V continuous, -35 V to +35 V short term (< 1 second)
Input protection - Current limited, overdrive protection to 40 VDC and ESD protection
Data Indicators - LED’s: Green = Receive, Orange = Transmit
Connectors - Pluggable 3-way screw terminals, 5.08mm pitch (12 to 30 AWG)
Ethernet Port
Host interface - 10/100BaseT, automatic polarity detection
Supported protocols - TCP/IP for configuration and firmware updating, TCP/IP and UDP for NMEA 0183 comms
Connector - RJ45
Indicators - Green – Link, Yellow – 100 Mbps
NMEA 2000 Port
Compatibility - NMEA 2000 Certification Pending
Speed / baud rate - 250 kbps
Connectivity - M12 male (A-coded) connector
Isolation
NMEA 0183 Listener - Uses IsoDriveTM, Hi-Pot tested to 1000V
NMEA 0183 Talker - Uses IsoDriveTM, Hi-Pot tested to 1000V
Serial Port - Uses IsoDriveTM, Hi-Pot tested to 1000V
Ethernet Port - 2kv for 60s
NMEA 2000 Port - OPTO-Isolated, Hi-Pot tested to 1000V
Mechanical
Housing Material - 316 Stainless Steel
Dimensions - 139mm (W) x 98mm (H) x 26mm (D)
Weight - 360g
Mounting - Bulkhead mount or DIN rail mount (DIN kit 1)
Approvals and Certifications
EMC - IEC 60945:2002-08, DNVGL-CG-0339:2019 & IACS UR E10 Rev7
Compass Safe Distance - 300mm
Type Approval Certificate - RINA
Operating Temperature - -25 to +70°C
Storage Temperature - -40 to +85°C
Relative Humidity (RH) - 95% @ 55°C
Environmental Protection - IP40
Guarantee - 5 Years when registered
This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications:
Cable Length (Feet): N/A
Data Interface: NMEA 0183
Box Dimensions: 2"H x 6"W x 10"L WT: 1.05 lbs
UPC: 5060998710751
