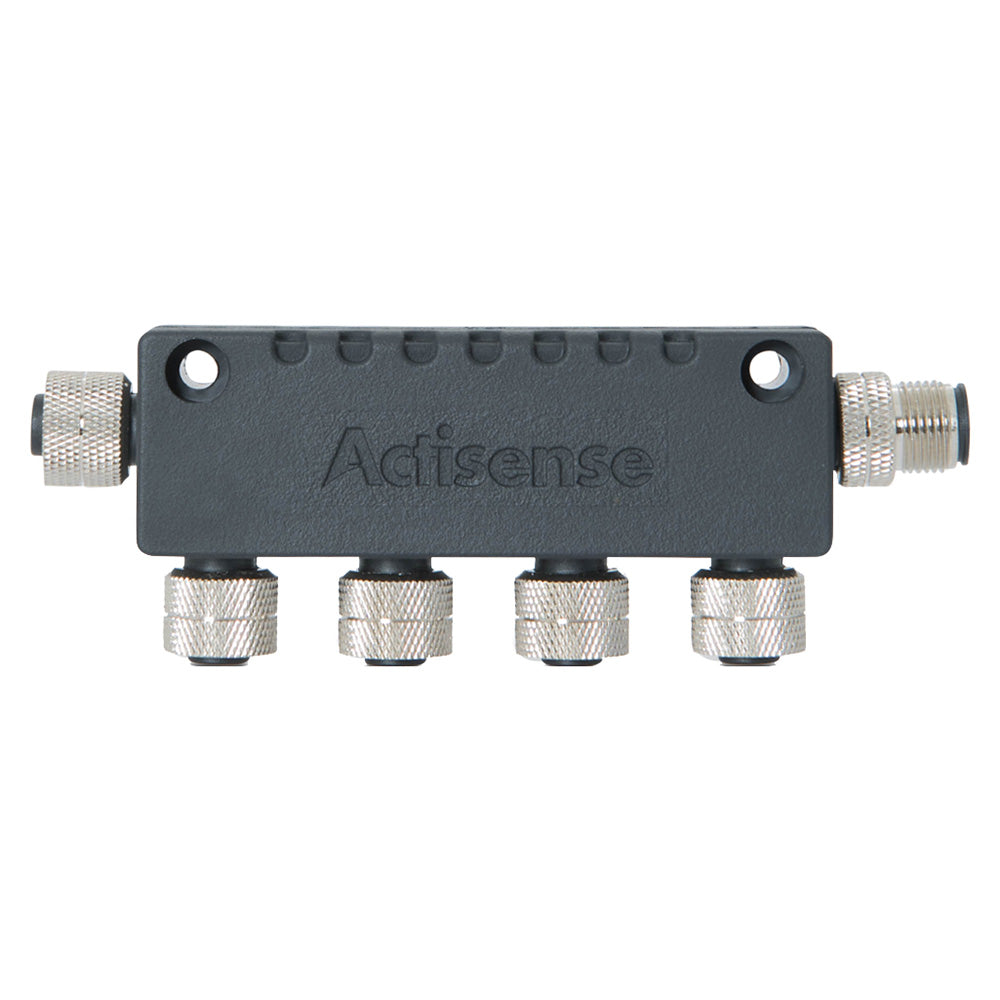

The 4 Way T-Piece from Actisense saves you time, space and money on your NMEA 2000® installation.
The Actisense 4 Way T-Piece is for use where multiple drops or ‘ports’ are required from the NMEA 2000 backbone. It’s as quick and easy to install as a single T-Piece, uses less space than two individual T-pieces and costs less than four.
The Actisense range of NMEA 2000 connectors and cables has been designed using our specialist interconnect and NMEA knowledge.
Features:
NMEA 2000 Approved
RoHS Compliant
Technical Specifications:
Electrical
Rated Current - 4A
Rated Voltage - 60V DC
Mechanical
Male Contact - Brass, gold plated
Female Contact - Phosphor bronze, gold plated
Contact Carrier - PA66 (30% Glass filled), black
Contact Polarization - Standard M12 -“A”- polarization
Mating Thread - M12
Screw Cap - Brass, nickel plated
O-Ring Seal - Rubber, Black
Housing - TPU, flame retardant to UL94V-0, Halogen Free
Internal Housing Shield - Copper Foil
Weight - 105g
Approvals and Certifications
Protection - IP67 (when mated)
Operating Temperature - -20°C to +70°C
Storage Temperature - -40°C to +85°C
This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Brochure (pdf)
