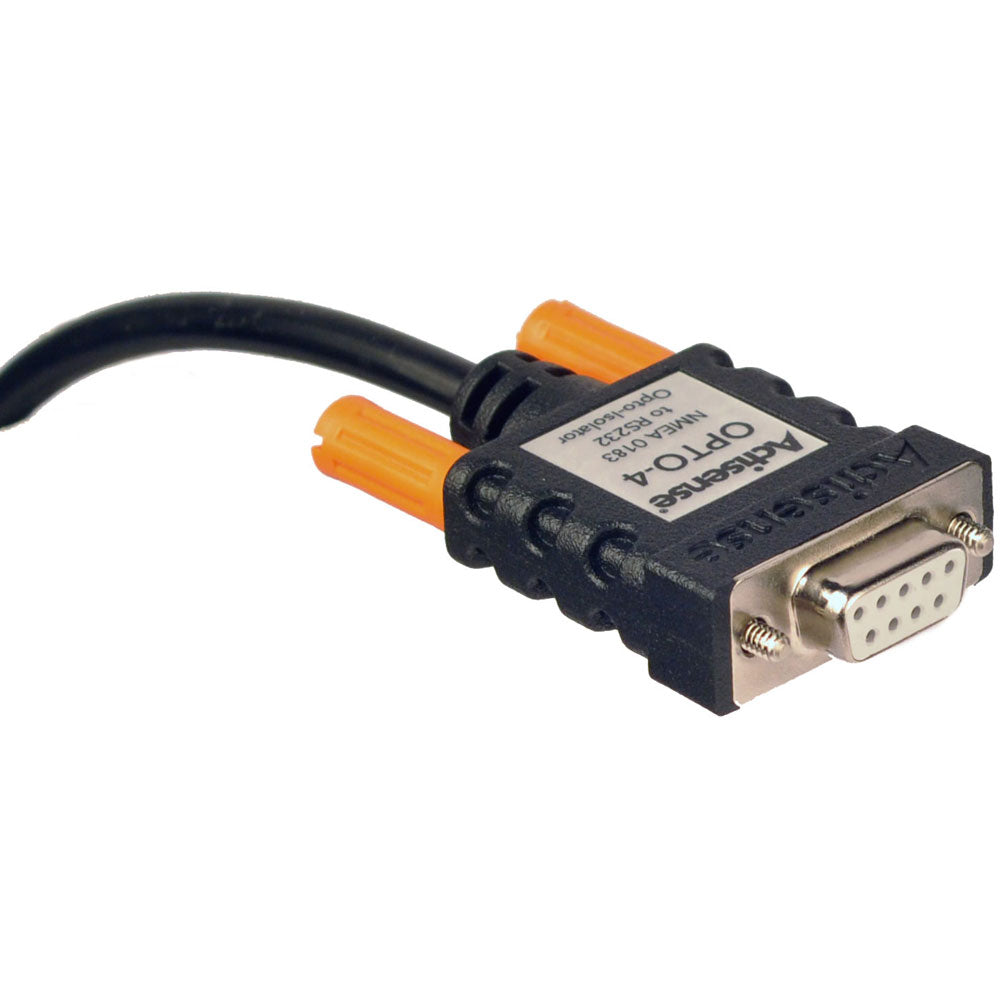

NMEA 0183 PC OPTO-Isolator Cable, RS232 DB9 Female, Shielded (Isolated to PC)
Add isolation to an RS232 port to protect against ground loops. The OPTO-4 provides a safe and low cost way of connecting an RS422 (NMEA 0183) system to an RS232 (PC COM port) system, or any other device with a standard RS232 9-pin port.
The OPTO-4 provides comprehensive galvanic OPTO-isolation to protect the PC input/receiver, plus important spike suppression to improve the PC output/transmitter protection. Initially designed for systems wishing to receive NMEA 0183 data without the risk of ground loop damage, the flexible OPTO-4 can be used to interface any RS422 and standard RS232 connection, whilst powering itself from the RS232 port, making installation simple and very quick.
The Actisense opto isolator design integrates an over-molded case for excellent water resistance and a small footprint for installation into tight spaces.
Features:
- One RS422 OPTO-isolated input
- One RS422 (NMEA 0183) output
- Up to 115200 baud
- Port powered
- Shielded cable and case
- Protects PC input/receiver from damage
- Water resistant cable.
- Ruggedized over-molded case suitable for harsh environment
- Quick and easy to install
Technical Specifications:
Electrical
- NMEA Listener / Input Isolation - 2kV Opto-Isolation between Red / Black NMEA Input Pair and all other Connections
- NMEA Listener / Input Voltage - +/-15V Continuous Maximum, +/-35V Max < 1 Second
- NMEA Listener / Input Signal Thresholds - Logic ‘0’ +2V to +15V, Logic ‘1’-15V to 0V
- NMEA Talker / Output Voltage & Current - Dependent on Host RS232 Interface. Typically +/-5V to +/-15V @ 10mA Max
- RS232 Voltage on Host - +/-7V to +/-15V
- RS232 Port Total Current Consumption - 2mA to 5mA depending on RS232 Voltage
- Speed / Baud Rate - 4800 to 115200 Baud
Mechanical
- Housing Material - PVC Black
- Thumb Screw Material - PVC Orange
- Screw - Steel, Nickel Plated, M2.8 Thread
- DB9 Connector - 9 Pin Female
- Cable Length - 1.5m
- Cable Wire - 22AWG (17/34AWG) Tinned Stranded Copper
- Cable Jacket - PVC
- Shield - Internal Copper Foil Shield
- Cable Outer Diameter - 5.5mm
Approvals and Certifications
- Operating Temperature - -20°C to +70°C
- Electrical Specification - Meets IEC 61162-2
- Weight - 100g
- Guarantee - 3 Years
- UL Certification - Cable E137250
This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications:
- Cable Length (Feet): 4.9'
- Connection Gender: Female
- Data Interface: NMEA 0183
- Box Dimensions: 2"H x 4"W x 5"L WT: 0.25 lbs
- UPC: 5060998710430
