Description
6006

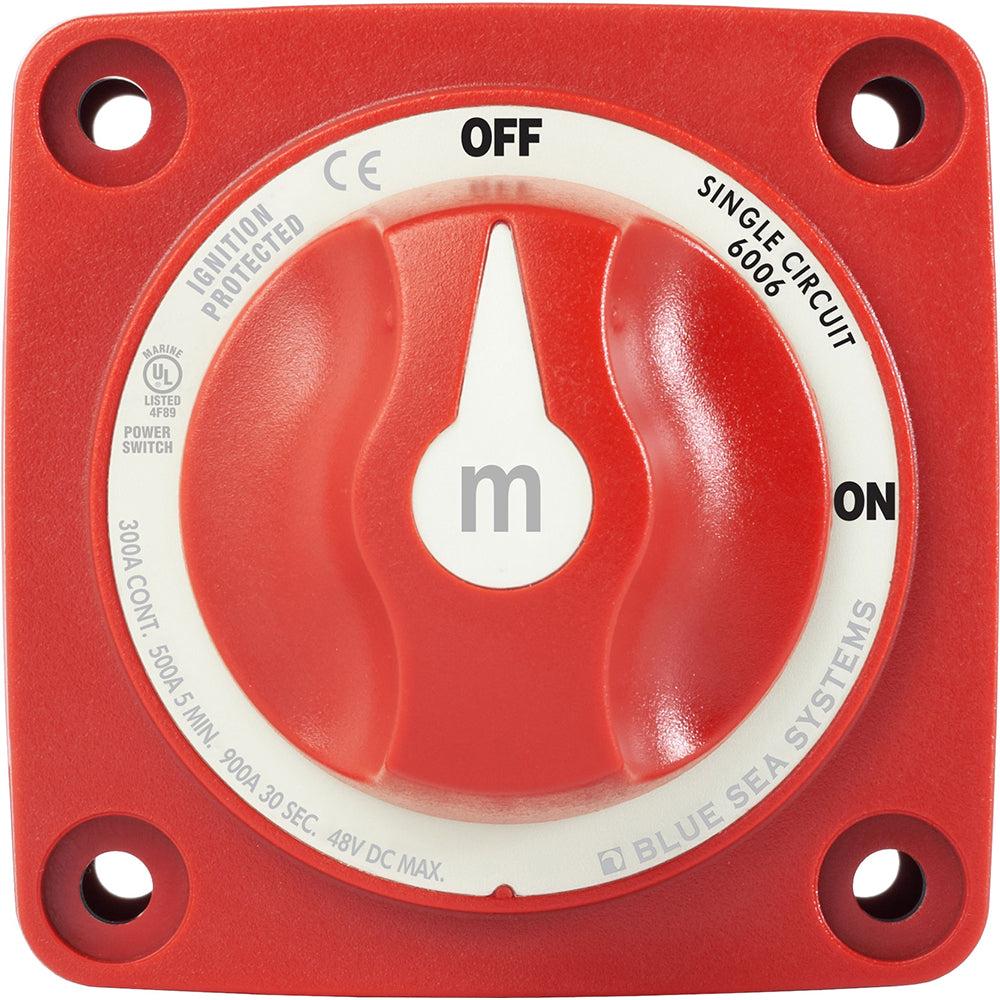

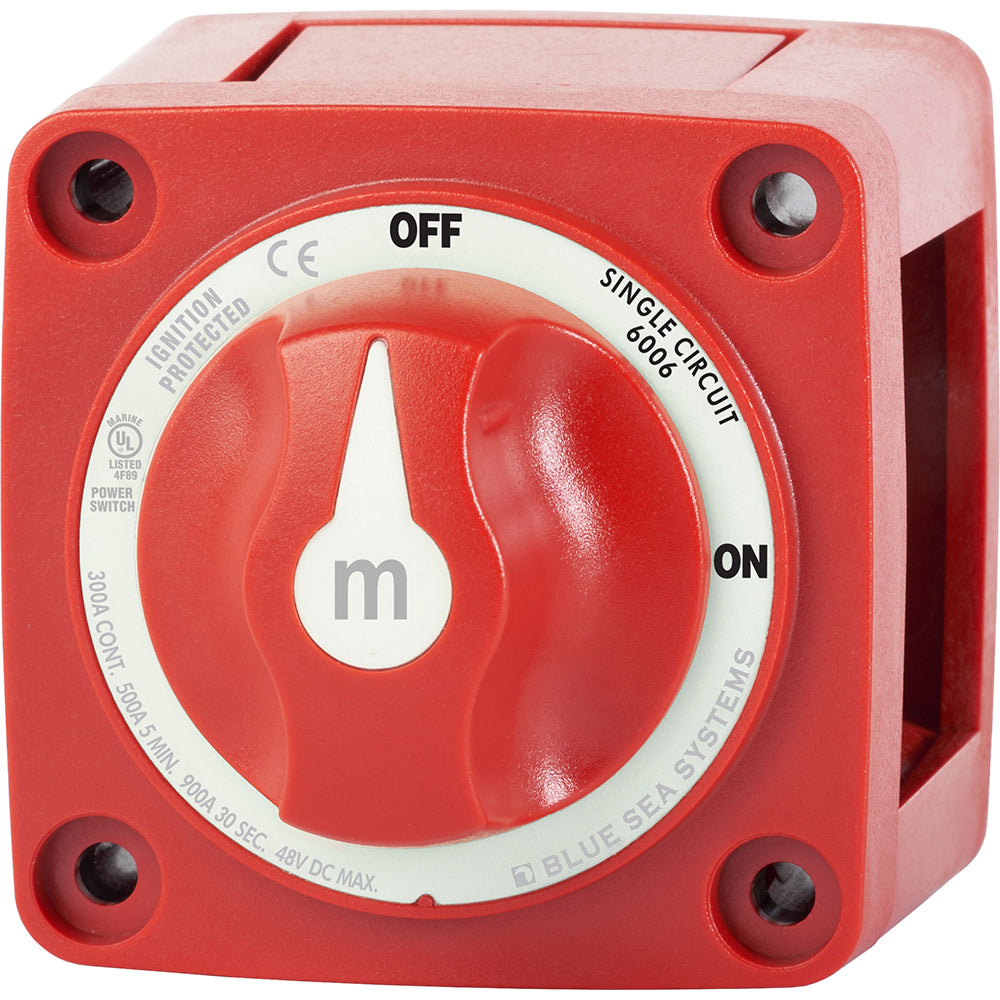

m-Series (Mini) Battery Switch
Single Circuit ON/OFF
- Switches a single battery to a single load group
- Multiple switches can be used to manage several isolated circuits including cross conntecting for emergency paralleling
- Ignition protected - Safe for installation aboard gasoline powered boats

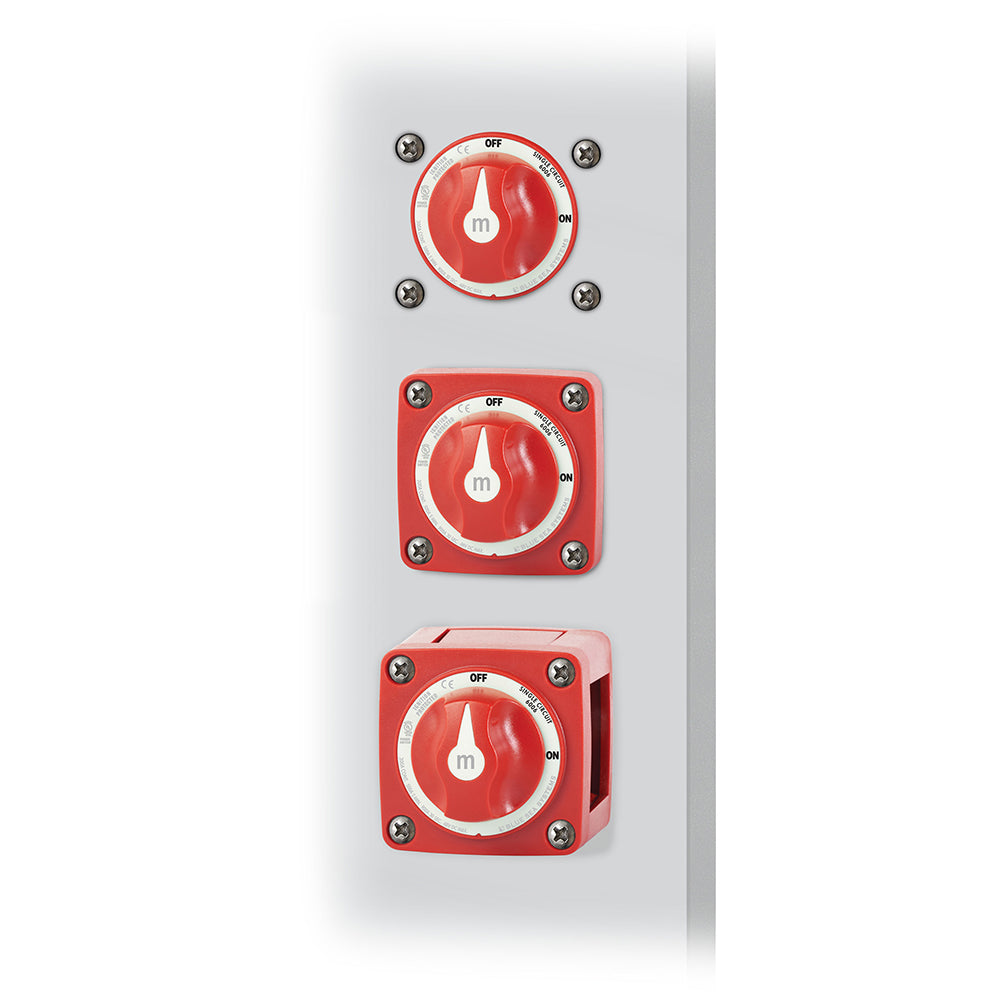

- Case design allows surface, front panel, or rear panel mounting

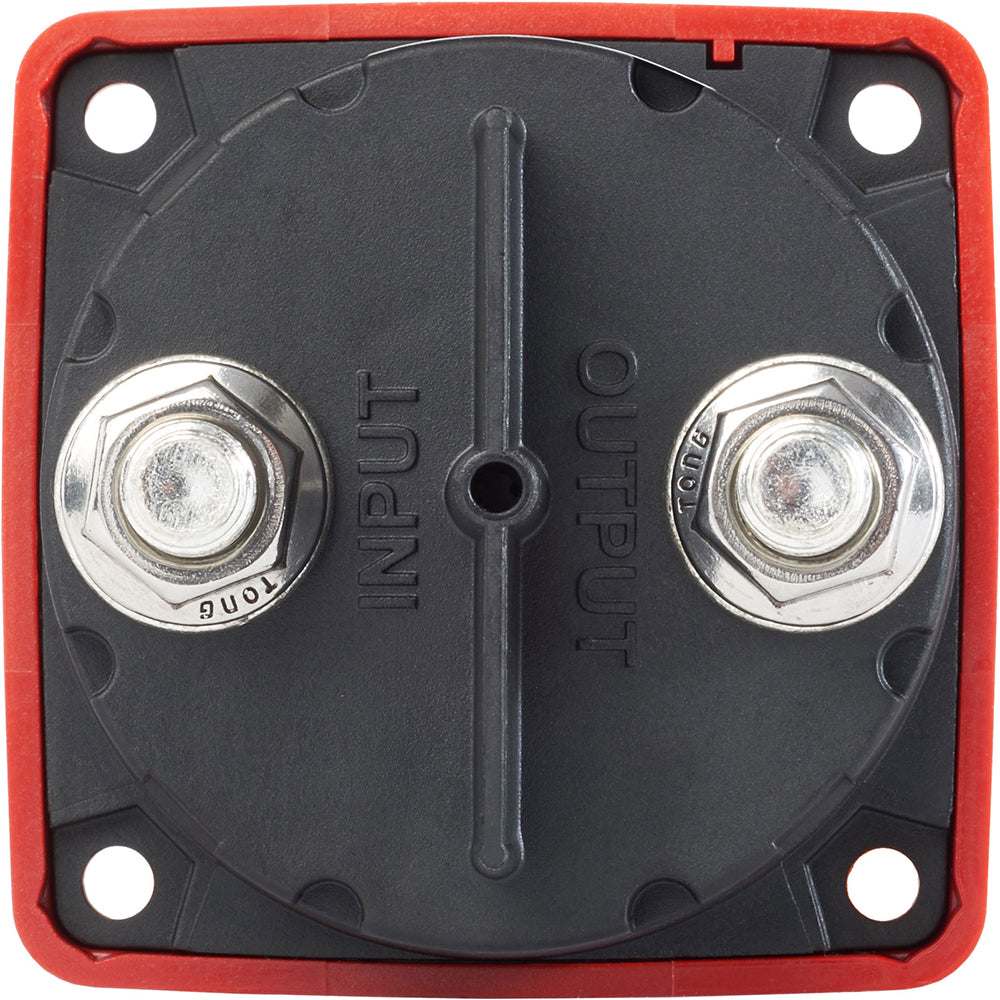

- Isolating cover with snap-on sections protects rear contacts
- 3/8"-16 tin-plated copper studs for maximum conductivity and corrosion resistance, accepts 3/8" and M10 ring terminals
- 7/8" (22.22mm) stud length to accept multiple cable terminals
- Ideal for marine or RV applications
- All non-corrosive marine grade metals
- Molded in durable reinforced polycarbonate
- Tactile textures indicate knob position by feel only
- Label with international ON/OFF legends
- Removable key or knob remains positively retained
- ICON label set included for circuit identification
WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
Specifications:
- Positions: 1
- Lockable: Yes
- Continuous Amperage: 700a
- Box Dimensions: 2"H x 4"W x 7"L WT: 0.65 lbs
- UPC: 632085060060
Owner's Manual (pdf)
