Description

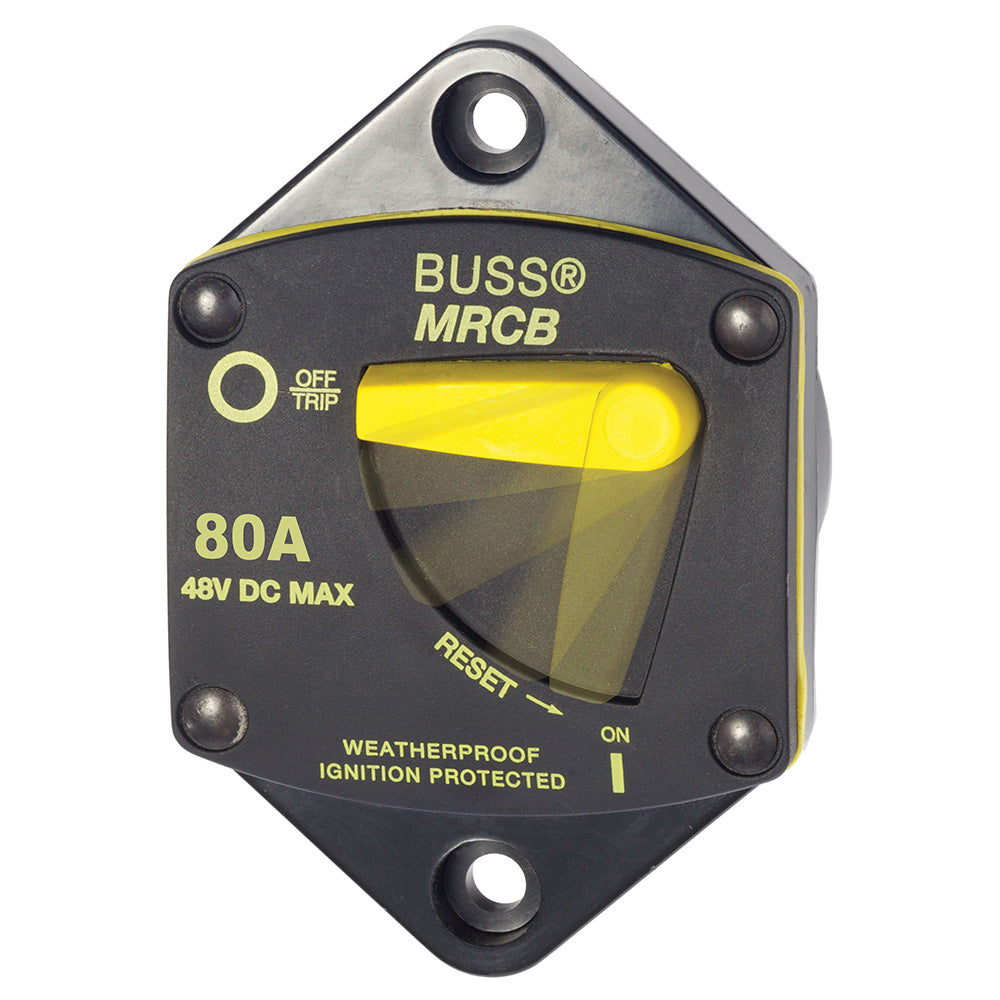

7042 187-Series Circuit Breaker - Panel Mount 80A
Features:
- Combines switching and circuit protection into a single device*
- Precise, single-lever operation
- "Trip Free" design cannot be held "ON" during fault current condition
- Waterproof
- Recessed mounting holes for clean appearance
- Ample Clearance around terminal studs accepts heavy gauge wire lugs
- Robust 5/16 M8 terminals provide high torque connections
- Large lever with vertical/horizontal orientation provides indication of trip status
- Ignition-protected - Safe for installation aboard gasoline powered boats
Specifications:
- Amperage: 80A
- Maximum Voltage: 48V DC
- Mounting: Panel Mount
- Circuit Breaker Type: Thermally responsive Bi-metal blade
- Terminal Stud Torque: 75 in-lb (8.47 Nm)
- Interrupt Capacity: 5000A @ 14VDC, 3000A @ 28VDC, 1500A @ 48VDC
- Minimum Operating Temperature: -40° C
- Maximum Operating Temperature: 85° C
- Case Material: Thermoset Polyester
- Circuit Breaker Class: Type III - switchable/manual reset - trip-free
- Mounting Hole: Accept #10 (M5) Screw
- Terminal Stud Size: 5/16" - 18
- Weight: 0.5lb (0.23 kg)
- Weight: 0.50lb (0.23 kg)
* Do not use as a switch where high inrush currents are expected.
WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
Specifications:
- Amperage: 80a
- Box Dimensions: 2"H x 5"W x 8"L WT: 0.5 lbs
- UPC: 632085170424
