Description

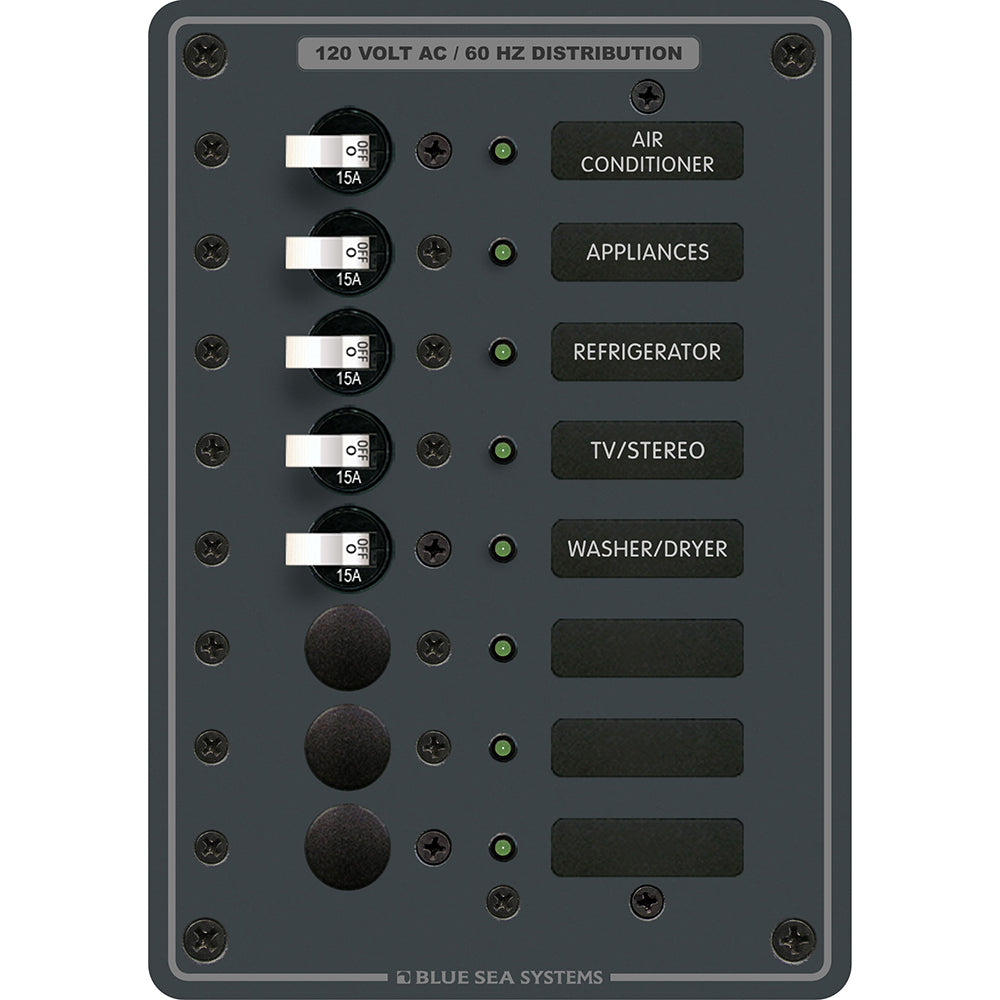

8059 AC 8 Position Toggle Circuit Breaker Panel
Features:
- All hot, neutral, and safety ground buses installed, fully pre-wired
- All circuit label positions are backlit on standard panels - No kit required
- "ON" indicating LEDs installed in all circuit posistions
- Maximum panel amperage - 100 Amperes
Specifications:
- Positions: 8
- Nominal Voltage: 120v AC
- Maximum Amperage: 100A
- Height: 7.5"
- Width: 5.25"
Included:
- (5) 7210 A-Series White Toggle Circuit Breaker - Single Pole 15A
- (1) 8031 Basic AC Panel Label Set - 30 Labels
- (8) 8034 LED - 120v AC Green
WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
Specifications:
- AC/DC: AC
- Max Breaker Quantity: 8
- Voltage: 120v
- Box Dimensions: 5"H x 7"W x 12"L WT: 2 lbs
- UPC: 632085080594
Owner's Manual (pdf)
