Description

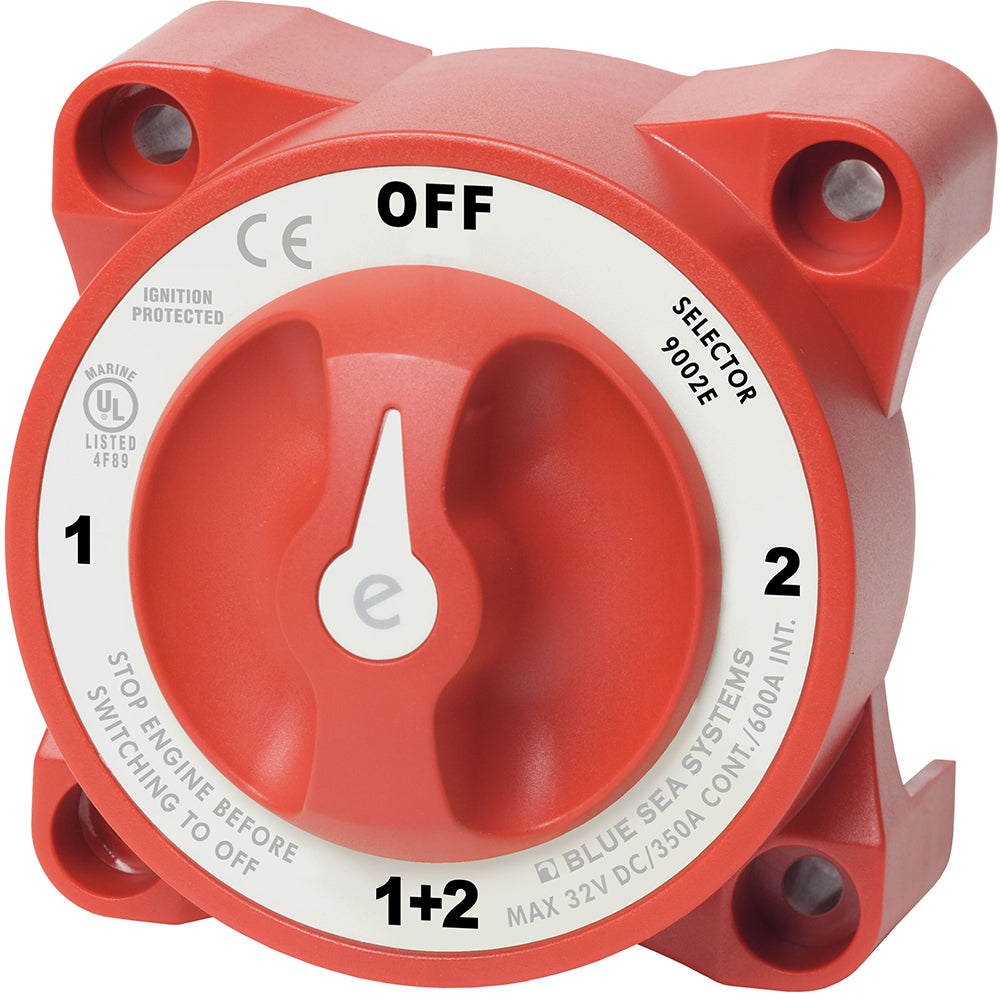

9002e e-Series Battery Switch Selector with Alternator Field Disconnect
Features:
- Switches isolated battery banks to all loads or combines battery banks to all loads
- Includes AFD (Alternator Field Disconnect)
- Make-before-break contact design allows switching between battery banks without power interruption
- Ignition protected—safe for installation aboard gasoline powered boats

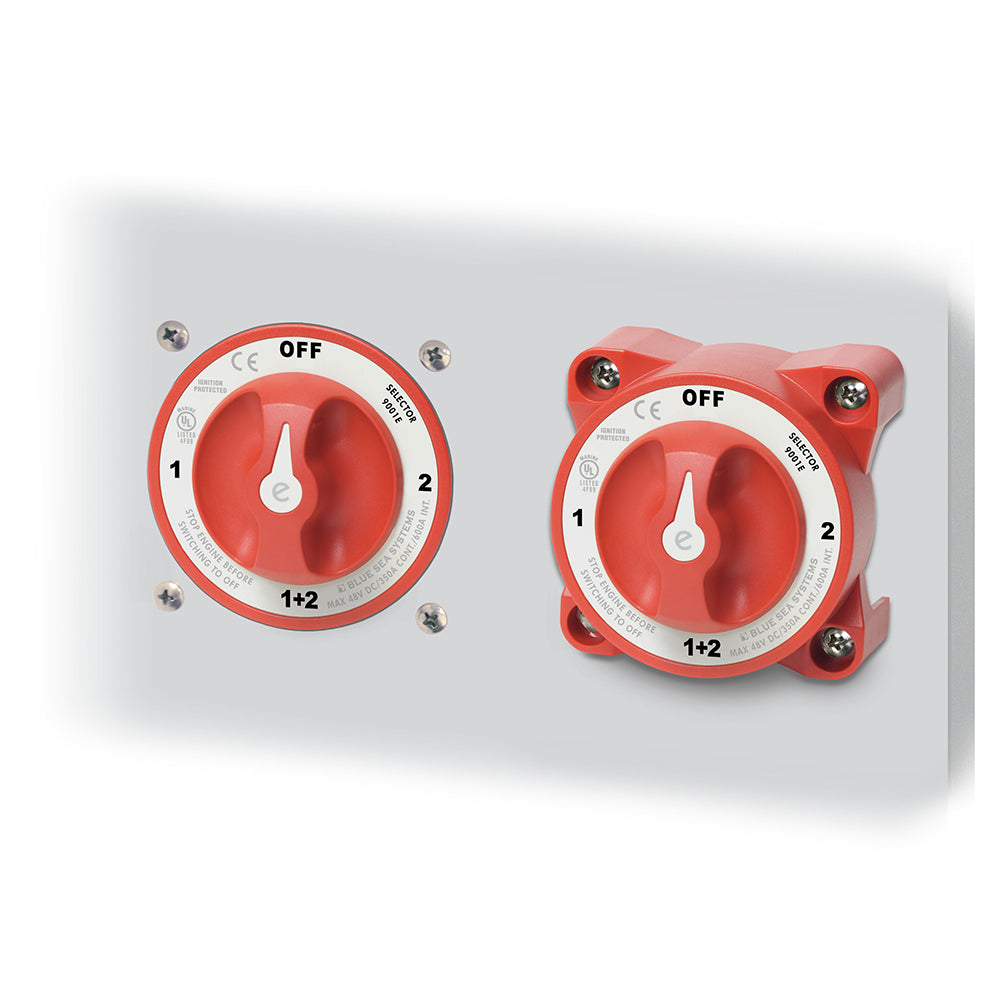

- Case design allows surface or rear panel mounting
Includes:
- AFD (Alternator Field Disconnect)
- CE Marked
- Ignition protected - Safe for installation aboard gasoline powered boats
- Case design allows surface or rear panel mounting
- Meets American Boat and Yacht Council (ABYC) requirements for battery switches

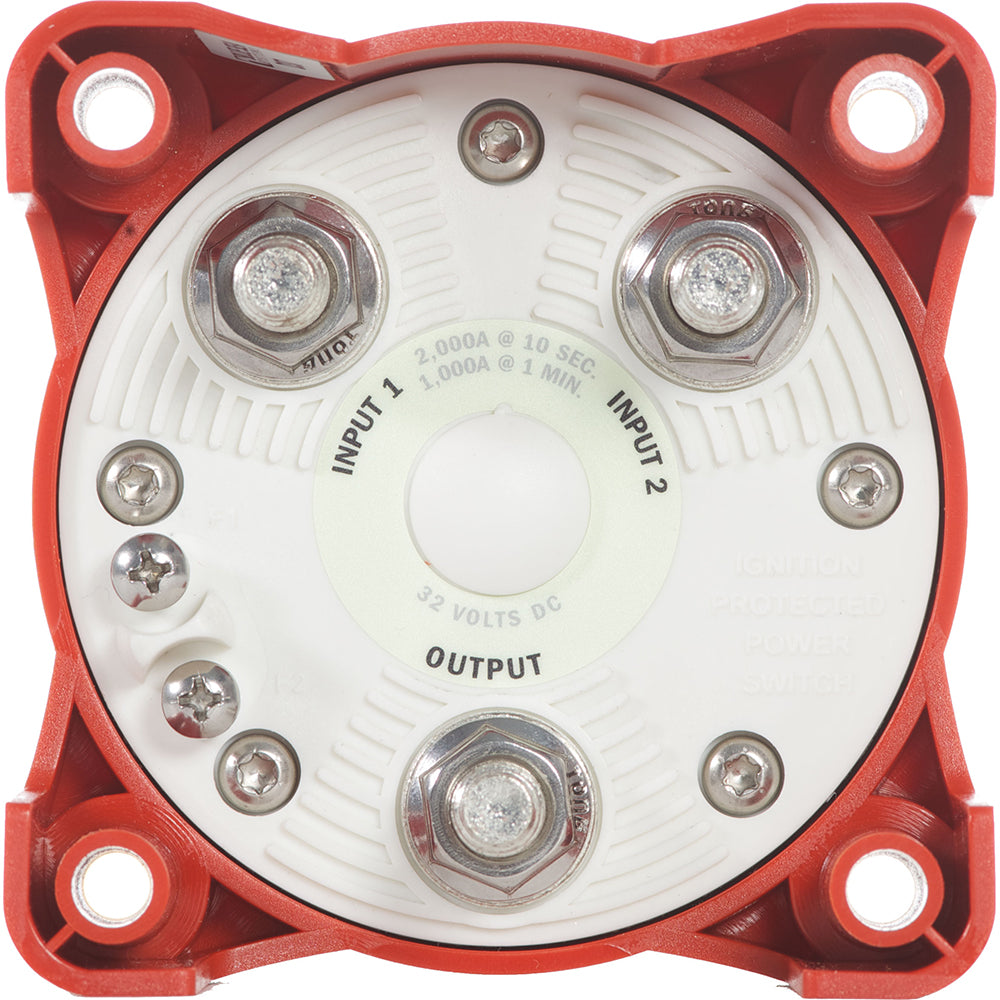

- 3/8"-16 tin-plated copper studs for maximum conductivity and corrosion resistance, accepts 3/8" and M10 ring terminals
- 7/8" (22.22mm) stud length to accept multiple cable terminals
- Tactile textures indicate knob position by feel only
WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
Specifications:
- Positions: 2
- AFD: Yes
- Lockable: No
- Box Dimensions: 3"H x 7"W x 9"L WT: 1.2 lbs
- UPC: 632085900250
Owner's Manual (pdf)
Brochure (pdf)
