Description

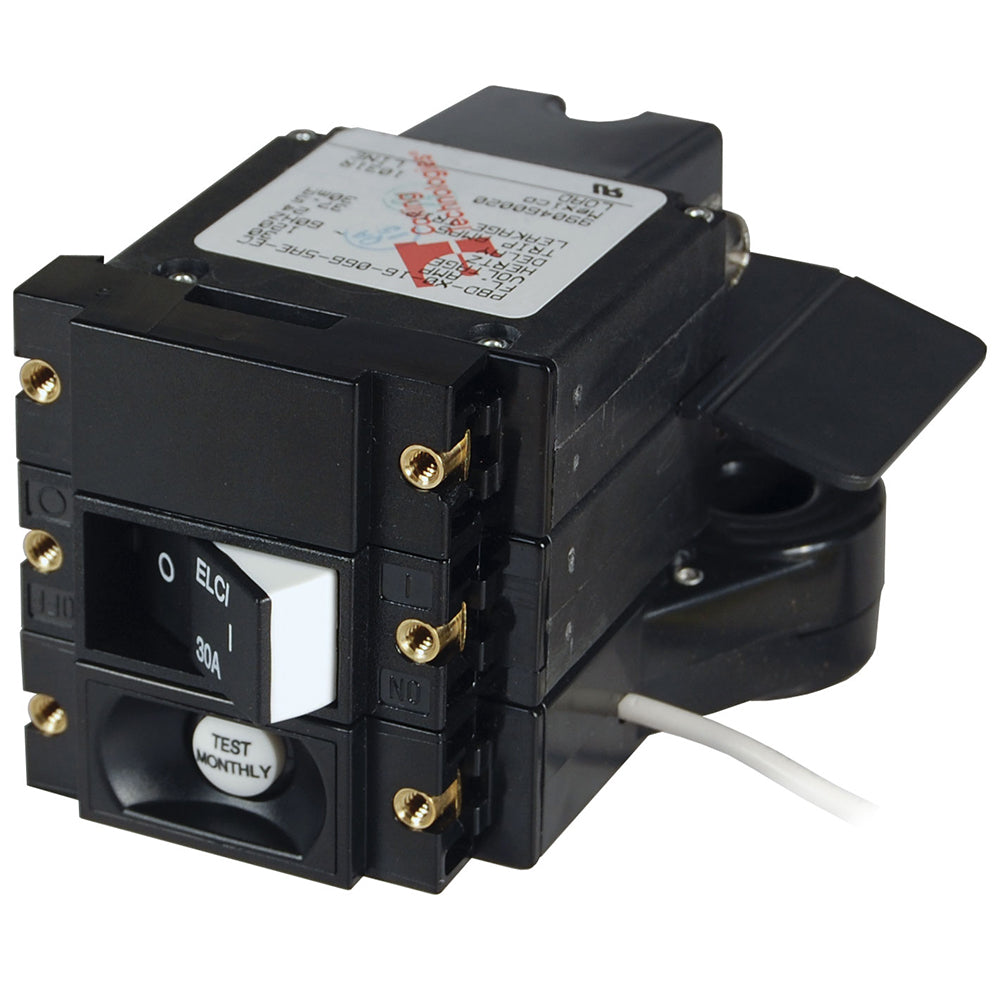

A-Series ELCI Main Circuit Breaker - Double Pole 120V AC 30A - Flat Rocker
Features:
- Provides over current and leakage protection per ABYC E-11 for whole boat shore power protection
- Meets UL 1500 external ignition protection requirements
- Trips on short circuit, overload, or leakage to ground
- Front panel mount—installed in a power distribution panel
Specifications:
- Amperage: 30A
- Actuator Style: Flat Rocker
- Poles: 2
- Ignition Protected: Yes
- Max Voltage: 240VAC/120VAC per pole
- Circuit Breaker Type: Magnetic Hydraulic - trip free
- Interrupt Capacity: 5000A
- Minimum Operating Temperature: -35 degrees C
- Max Operating Temperature: 65 degrees C
- Leakage Trip Amps: 30mA
