B924 Class B AIS Transceiver with WiFi, Bluetooth & VHF Antenna Splitter - 2W CSTDMA
**As the FCC requires all units sold in the US to be programmed by a qualified technician. Please submit the form below for programming at the time of purchase. A copy of the MMSI registration or FCC Ship Station License is required along with the vessel master or owner's signature on the completed programming form.**
Click here to download form.
The most feature-rich 2W CSTDMA AIS transceiver in the B900 range. The B924 includes WiFi & Bluetooth for seamless wireless connectivity and AIS data streaming to any mobile device, PC, or wearable, with an integrated VHF antenna splitter to enable your transceiver to share your existing VHF antenna without any loss of performance. Like all B900 transceivers, it also includes an integrated next-generation GPS receiver and antenna and is designed for em-trak's unique FLEXI-FIT® bracket system to make installation as easy as possible.
Exceptionally lightweight and completely weatherproof, the B924 delivers the very best (2W) AIS receive and transmit performance, so you see all AIS information and targets, even at maximum range. Your transceiver will also work with our CONNECT-AIS mobile phone app to make programming, configuration, and transceiver health monitoring simple and convenient.
Features:
- Certified AIS Class B – 2W CSTDMA
- Integrated WiFi and Bluetooth
- Integrated VHF antenna splitter
- Global certification - USCG / FCC / Canada / Europe
- SRT-AIS™ Transceiver Engine for superlative proven performance
- FLEXI-FIT™ bracket system for easy, convenient, and secure installation
- Internal high-performance GPS receiver and antenna (external antenna optional)
- Water, pressure spray, and damp proof (IPx6, IPx7 certified)
- Protected from vibration, shock, and extreme temperatures
- Small and lightweight
- Ultra-low power consumption – best in class
- Guaranteed connectivity and interoperability with any app, chart plotter, smartphone, tablet, or PC
- NMEA 0183 & NMEA 2000
- Automated health and performance monitoring
- Silent mode (transmit-off) function
- Enhanced RF screening to protect against electromagnetic interference
- Built-in power surge protection
Physical & Environmental Specifications:
- Size (H x W x D): 150 x 115 x 45mm
- Weight: 425kg
- Operating temperature: -25°C to +55°C
- Storage temperature: -25°C to +70°C
- Ingress protection: IPx6 and IPx7
Electrical Specifications:
- Supply voltage: 12V or 24V DC
- Supply voltage range: 9.6V - 31.2V DC
- Average current (at 12V): 280mA
- Average current (at 12V) (wireless off): 245mA
- Peak current: 2A
- Average power consumption (at 12V): 3.4W
- Average power consumption (at 12V) (wireless off): 2.9W
- Galvanic isolation: NMEA 0183 inputs only, NMEA 2000, VHF antenna port

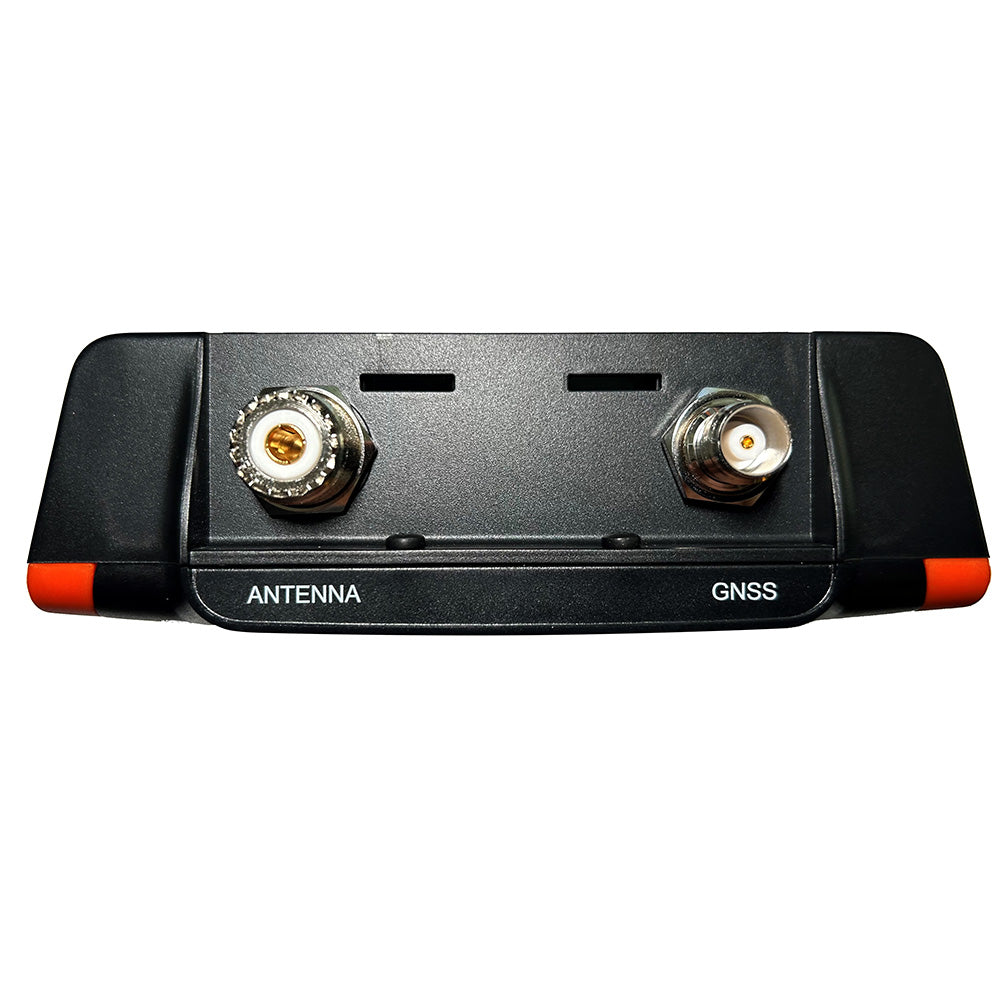

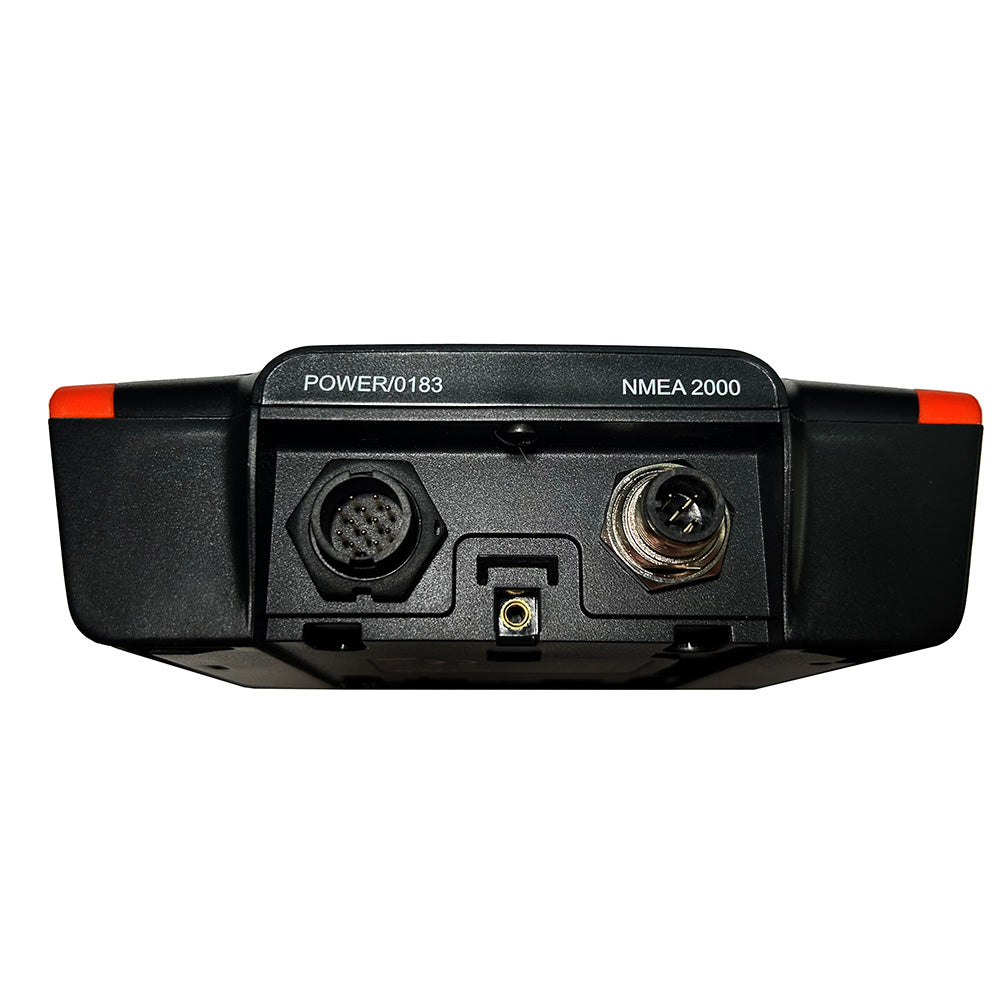

Connectors:
- VHF antenna: SO-239
- VHF radio: SO-239
- GNSS: TNC
- Power: 12-way circular multipole
- NMEA 2000: 5-way Micro-C connector
- USB: USB Micro-B
Data Interfaces:
- NMEA 0183: 2 x bi-directional ports
- NMEA 2000: NMEA 2000 Ed 3.101, LEN=1
- USB: PC virtual com port for NMEA 0183 data
- WiFi: IEEE 802.11 (a/b/g), client and access point mode supported (2 connections in access point mode)
- Bluetooth: BT Classic 4.0, 7 concurrent connections
Standards Compliance:
- AIS standards: IEC 62287-1 Ed. 3, ITU-R M.1371.5
- Product safety standards: EN60950-1 2006 +A11:2009 +A1:2010 +A12:2011 +A2:2013 EN62311:2008
- Environmental standards: IEC 60945 Ed. 4
- Serial data interface standards: IEC 61162-1 Ed 5.0, IEC 61162-2 Ed 1.0
- NMEA 2000: NMEA 2000 Ed 3.101
- GNSS performance standards: IEC 61108-1 Ed 2.0, IEC 61108-02 Ed 1.0
GNSS:
- Systems supported: GPS, GLONASS, BeiDou, Galileo (two of any combination, three including GPS, Galileo)
- Channels: 72
- Internal/external antenna: Internal or optional external antenna
- Time to first fix from the cold start: 26s
VHF Transceiver:
- VDL access scheme: CSTDMA
- Operating frequency: 156.025MHz - 162.025MHz
- Channel bandwidth: 25kHz
- Receivers/transmitters: 2 x receivers, 1 x transmitter
- AIS receiver sensitivity (20% PER): -111dBm
- AIS transmitter power: 2W (+33dBm)
User Interface:
- Indicators: Power, transmit timeout, error, silent mode
In the Box:
- 1 x AIS transceiver
- 1 x Power and data cable (2M)
- 1 x VHF radio accessory cable
- 1 x FLEXI-FIT™ mounting bracket
- Complete with screws & optional fixing tape
This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications:
- AIS Class: B
- Antenna Included: Yes
- Display Included: No
- Function: Receive/Transmit
- GPS Included: Yes
- Box Dimensions: 6"H x 7"W x 7"L WT: 2.25 lbs
- UPC: 672975210533
