HD IP Flush Vertical Surface Mount - 3MP Max Resolution - 316L Marine Grade Stainless Steel - Recess Mount Dome

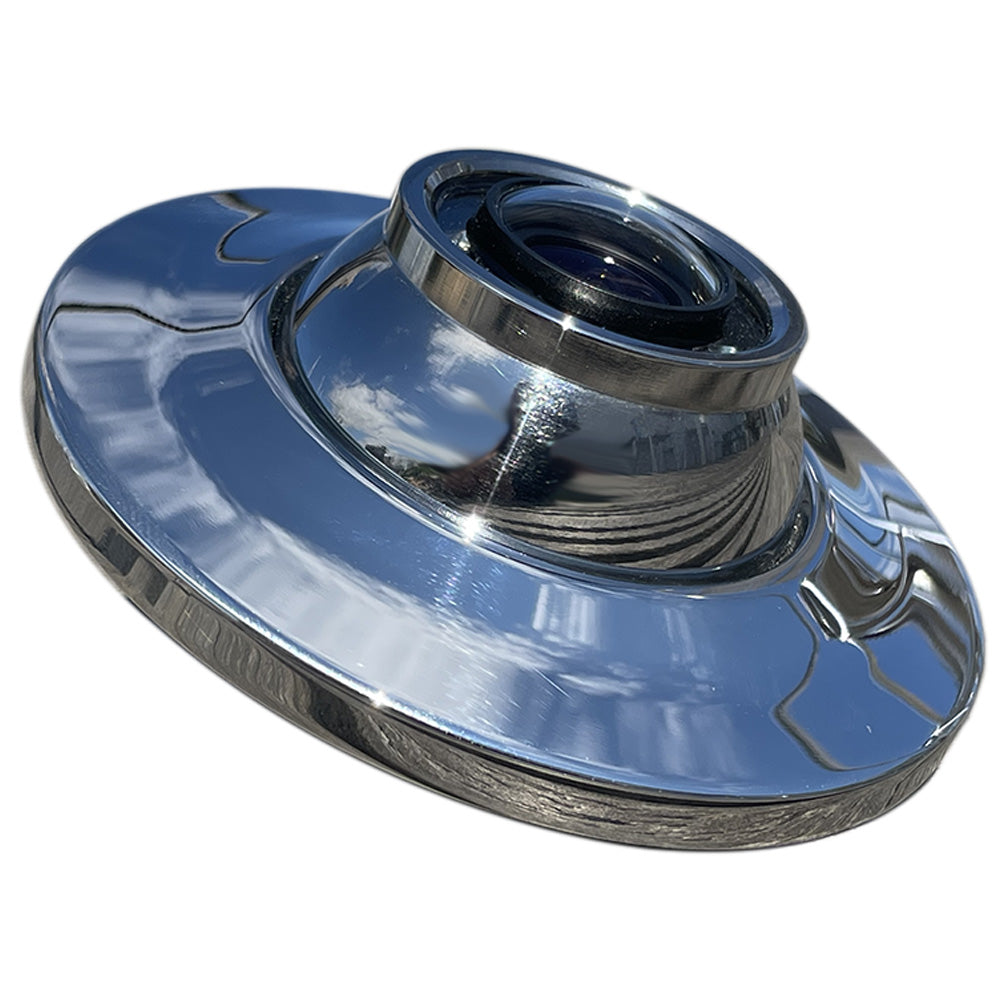

Iris’ Sx76 series camera is the first of its kind designed to be installed into a bulkhead or vertical surface. Its waterproof stainless steel case is machined from marine-grade 316L stainless steel, which means it will not corrode in harsh saltwater environments, making it a great option as a backup or docking camera for boats. By mounting the camera on the sides of your boat, it can even be used when mooring alongside jetties or pontoons.
During installation, the camera’s inner ball can be adjusted and then locked into position by simply tightening the outer bezel to achieve the desired view.
For IP-based systems, the S476 features 3MP high-definition resolution and 12VDC or PoE power.
As well as marine applications, the camera's tough case, and small footprint make it a perfect visibility aid for recreational vehicles, fire and rescue trucks, and other applications where a robust and reliable high-definition camera is required.
The camera is certified to EN60945, EN55032, EN55035, and EN60529 (IP66) and is ONVIF compliant. For marine applications, the camera is directly compatible with Raymarine LH2 and above, Simrad, Lowrance, and B & G. For Garmin systems, use them in conjunction with Iris CMAC systems.
Features:
- 1.8mm Standard (160-degree horizontal field of view)
- Corrosion-Proof 316L Marine Grade Stainless Steel
- 3MP Hi-Def IP Camera Format
- IP Version - max. 3MP Hi-Def resolution
- Super wide angle 160-degree lens
- IP version supports PoE and 12VDC - ultra-low power
- Built-in infrared LED illumination (10m range)
- EN60945, EN55032, EN55035, EN50529 (IP66) , FCC, CE
- Shock & vibration proof
- Super rugged and easy to install
Applications:
- Perfect for extreme environments
- Workboats & tug boats
- Fishing vessels
- Engine room monitoring
- Law enforcement & military
- Wind farm vessels
- SUVs, RVs, work vehicles, and trucks
- Luxury vessels
- Passenger ferries & cruise liners
Specifications:
- Lens (millimeter): 1.8mm
- Horizontal Field of View: 160-degree HFOV
- Sensor (inch): Sensor 1/4” CMOS Sensor
- Resolution: Variable - 3MP Max (2304 x 1296)
- Interface: RJ45 10/100 Base T Ethernet
- Video Processing: H.264 Codec / Dual Stream
- Protocols/Video Format: TCP/UDP/HTTP/Multicast/UPnP/NTP/RTSP/ONVIF
- Onvif: Profile S v21.06
- Bitrate: VBR / CBR 32kbps 8Mbps
- Illumination: 6 x 850nm Infra-Red - 10-meter range
- Lens/Field of View: 1.8mm Standard (160-degree HFOV)
- Mirroring: Horizontal & Vertical - Configure via Browser
- Automatic Gain Control: Supported / multiple levels
- Compatibility: Raymarine / Axiom (LH2 or higher), Simrad / B & G / Lowrance (Latest NOS / NEON OS) / PC-based systems, MFDs with digital (HDMI / DVI) Input, MFDs via IRIS NVR/HVR, IE Browser
- Operating Temperature: -30 + 60-degrees C
- Connections: Video: Water Resistant RJ45 Socket / Non-PoE with DC Power Socket
- Material: Marine Grade 316L Stainless Steel (highly polished as a standard)
- Power: +12VDC (+10 +15VDC Range) / 1W Nominal / 1.8W Max (LED’s ON)
- Power Over Ethernet (PoE): IEEE802.3af
- Weight & Dimensions: 88mm ø x 22.25mm above and below the mounting surface
- Environmental: EN60529 / IP66
- EMC: EN55032:2015/A11:2020 & EN55035:2017/A11:2020 EN60945:2002 Sections 9 & 10 / PoE with Compliant PoE Injector / FCC Part 15 A & B
- RoHS: EN6300:2018
