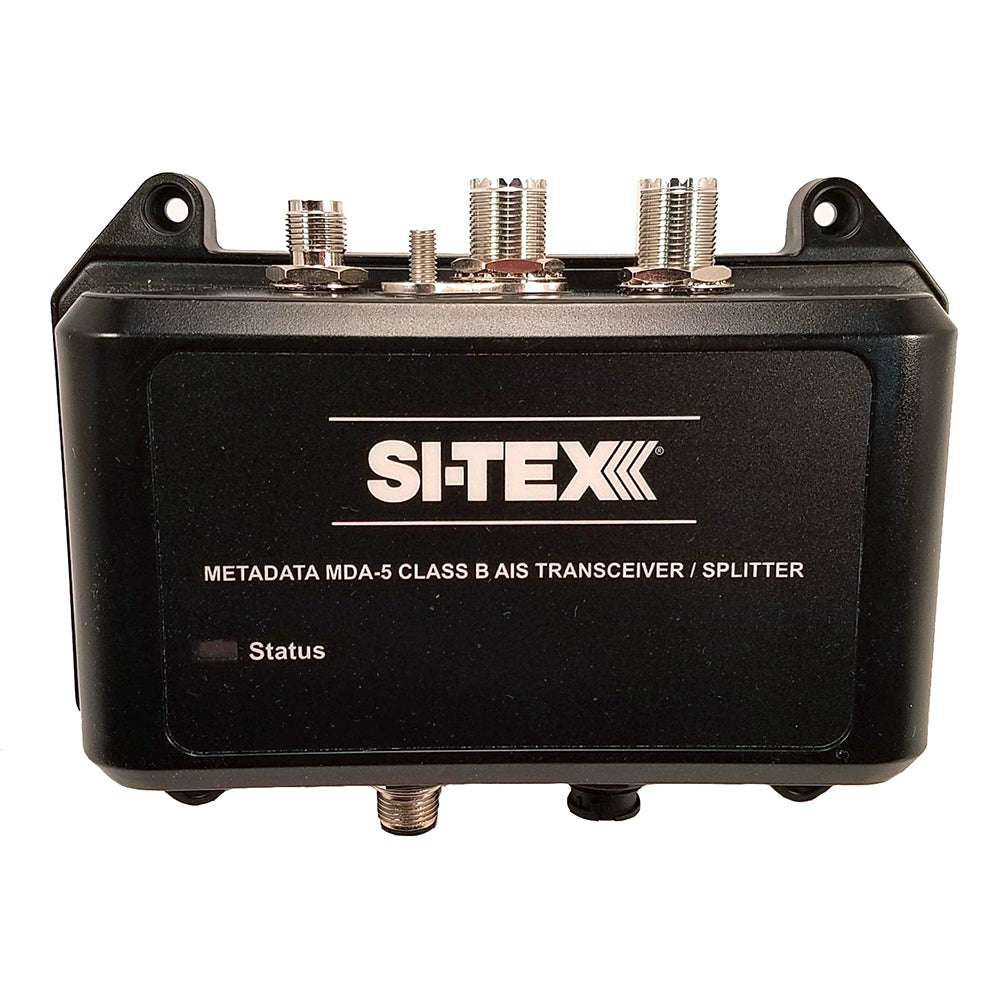

Name: SI-TEX MDA-5 Hi-Power 5W SOTDMA Class B AIS Transceiver w/Built-In Antenna Splitter Long Range Wi-Fi [MDA-5]
Brand: SI-TEX
SKU: ANX-74076
Price: 1429.00 USD
Availability: InStock

SITEX MDA5 HiPower 5W SOTDMA Class B AIS Transceiver wBuiltIn Antenna Splitter Long Range WiFi MDA5

Roll over image to zoom in Click on image to zoom

**As the FCC requires all units sold in the US to be programmed by a qualified technician. Please submit the form below for programming at time of purchase. A copy of the MMSI registration or FCC Ship Station License is required along with the vessel master or owner's signature on the completed programming form.**

Click here to download form.

MDA-5 Hi-Power 5W SOTDMA Class B AIS Transceiver w/Built-In Antenna Splitter & Long Range Wi-Fi

Features:

The MDA-5 is the world's most sophisticated fully certified 5-Watt SOTDMA Class B AIS Moble on the market
5-Watt transmitter power, Higher Output power means your vessel will be seen at longer ranges by other vessels and via AIS websites
SOTDMA Class A Priorities means that your vessel will always transmit and be seen in very congested Commercial Harbors and Ports where traditional Class B units don"t have network priority.
Intergrated zero loss VHF antenna splitter - no second antenna needed
Built-In 802.11 b/g/n Long Range WIFI allows unit to send AIS and Position data to any WIFI connected devices
NMEA-0183 data port, NMEA-2000 & USB intelligent connectivity to all bridge systems
Built-In GPS & GLONASS satellite navigation receiver
Water Proof certified to IPX7
Dual Receivers decodes all DSC & AIS messages, including MOB & SART
Ultra-power efficient
IEC-62287-2, FCC and USCG certified
2 Year Warranty

Package Includes:

Commercial Grade External GPS Antenna with Coax Cable
Mounting hardware
Power & Data Interface cable
VHF Radio Connection cable
Product Information DVD, with ProAis2 Software for Programming & Troubleshooting
User Manual & Quick Start Guide

Specifications:

Transmitter Output Power: 5 Watts
VHF Antenna Connector SO-239 UHF
GPS Antenna Connector TNC
Frequency Range: 156.025-162.025 Mhz
Input Voltage: 9.6-31.2 VDC
Current Draw: 220mA average power consumption
Operating Temperature Range: -25C to +55xC
Ingress Protection: IP67
Dimensions (transceiver): 6.8" W x 5.0" H x 2.0" D
Weight 0.8 lbs.

This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Specifications:

AIS Class: B
GPS Included: Yes
Function: Receive/Transmit
Display Included: No
Antenna Included: No
Box Dimensions: 5"H x 10"W x 14"L WT: 3.5 lbs
UPC: 010407510705

Quick Guide (pdf)
Owner's Manual (pdf)
