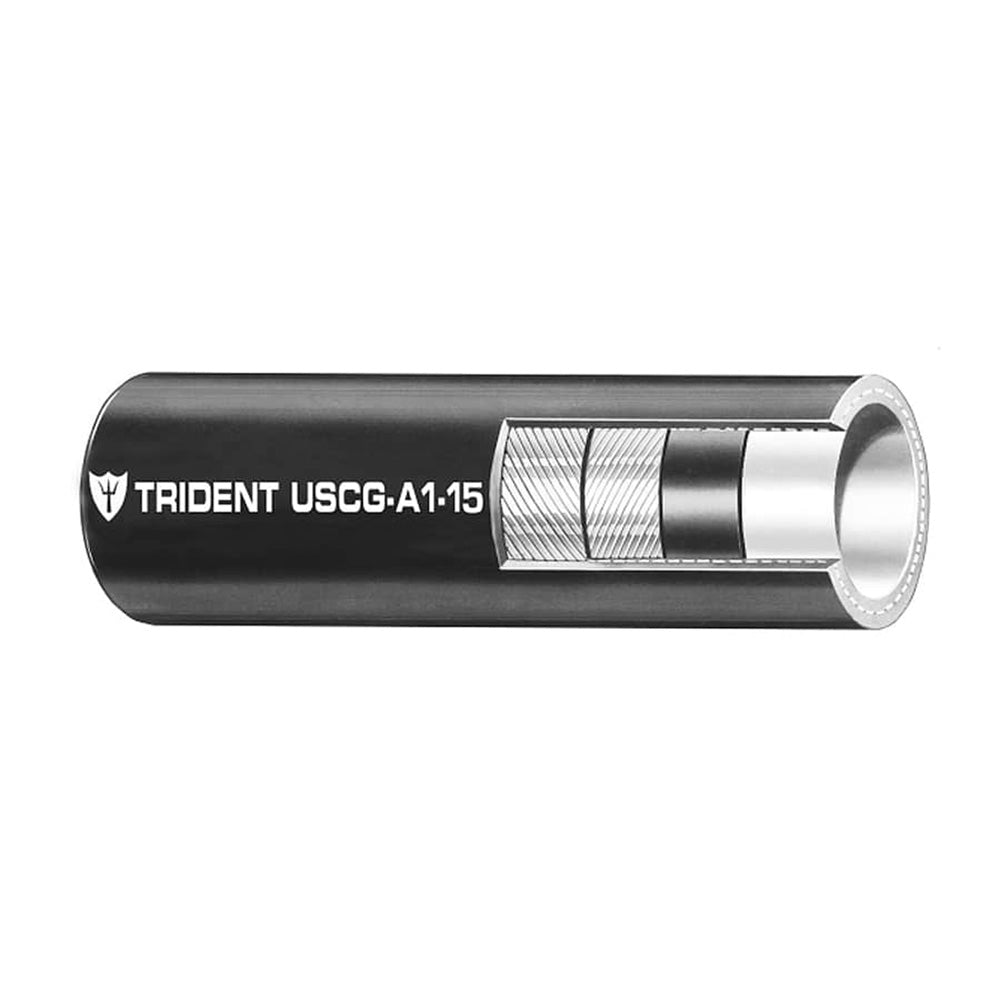

3/8" x 50' Boxed Low Permeation Type A1-15 Fuel Line Hose - Black
Trident Barrier Lined A1-15 Fuel Hose for both gasoline (including ethanol blends up to 85%) and diesel (including bio diesel blends up to B100). This hose is built with the best fuel, fire, and age-resistant formulation, and a unique "Barrier Liner" on the inside surface of the tube, so fuel is not in direct contact with rubber.
Features:
- Provides extraordinary resistance to fuel permeation, aging, and also to fire, heat, cold, and the ozone
- Also provides excellent bend-ability
- NMMA Type Accepted & CE certified
Application:
- Marine Fuel Hose (distribution, return, vent and transfer)
- For all marine fuels including gasoline, alcohol blends (CE-10), diesel and bio-diesel
Construction:
- Tube: Nylon Internal Barrier, NBR
- Cover: NBR/PVC Blend
- Reinforcement: Polyester 2 spiral
- Temperature Range: -20°F to 212°F (-28ºC to 100ºC)
- Length: 50 ft. (15 m) Boxed
Specifications:
- Inner Diameter: (inch) 3/8" / (mm) 9.50
- Outer Diameter: (inch) 0.681 / (mm) 17.3
- Burst Pressure: (psi) 400 / (mpa) 2.76
- Working Pressure: (psi) 100 / (mpa) 0.69
- Bend Radius: (inch) 2" / (mm) 50.8
- Weight: (lb/100 ft.) 15.6 / (kg/m) 0.233
- Permeation Rate: <10 (Standard is 10g/m2/24 hrs (CE10)
*The #365 series exceeds ABYC H-24 & H-33, SAE J1527, ISO 7840, USCG Type A1-15; CARB Executive Order RM-17-008 and EPA Certified low permeation Type A1-10
Specifications:
- ID Diameter (inches): 3/8"
- Length (Feet): 50'
- Box Dimensions: 3"H x 18"W x 18"L WT: 8.7 lbs
- UPC: 704917010571
Quick Guide (pdf)
