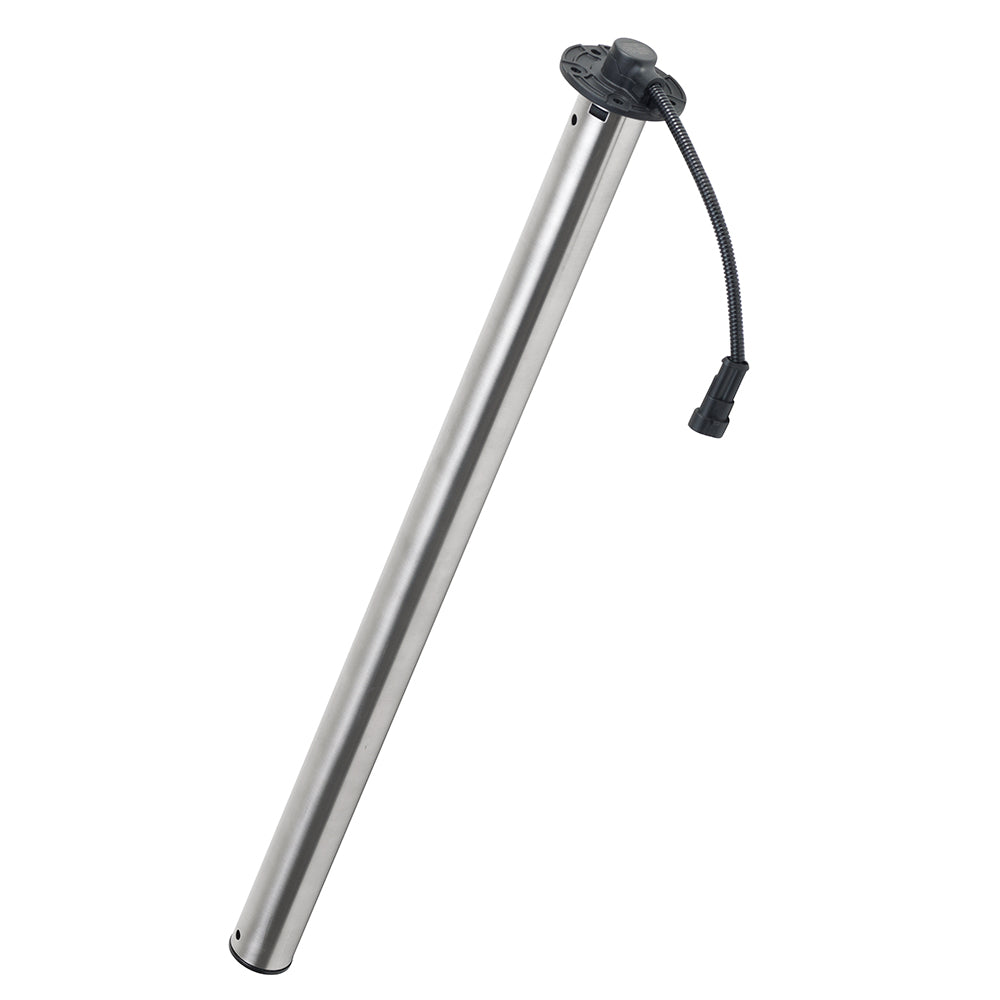

Deep-Pipe Level Sensor is ideal for usage in fuel tanks. Its 38 mm diameter vertical tube contains a float inside, which measures a level of the liquid. Small holes at the top and bottom of the tube act as a baffle to fuel sloshing around in the fuel tank, so the float position remains stable at any sea state.
Sensors are made in various lengths starting at 150 mm increasing to 1200 mm – please ensure that the length chosen is at least 4 mm from the base of the fuel tank once fitted.
Features:
Tubular Sensor Stainless Steel
Suitable for Fuel (Oi -Petroleum-Diesel-Gasoline) and Water
Length: 160 mm
Technical Specifications:
TE Superseal Connector 2-Pole IP67
Operating Temp.: -25°C to 65°C or -13°F to 149°F
Operating Voltage: 6 to 24 VDC
Compensation chamber
Flange: 5-Hole SAE Flange 54mm PA66 GF30
Wiring harness with length of 200 mm
Signal ranges: 240 to 33 OHM
IP67 protection rating
Communication: Analog
In the Box:
Deep-Pipe Level Sensor
Installation Kit
Safety Instructions
Installation Instructions
*Sold as an Individual
This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.
Specifications:
Color: Silver
Box Dimensions: 2"H x 4"W x 9"L WT: 1 lbs
UPC: 7640178725799
