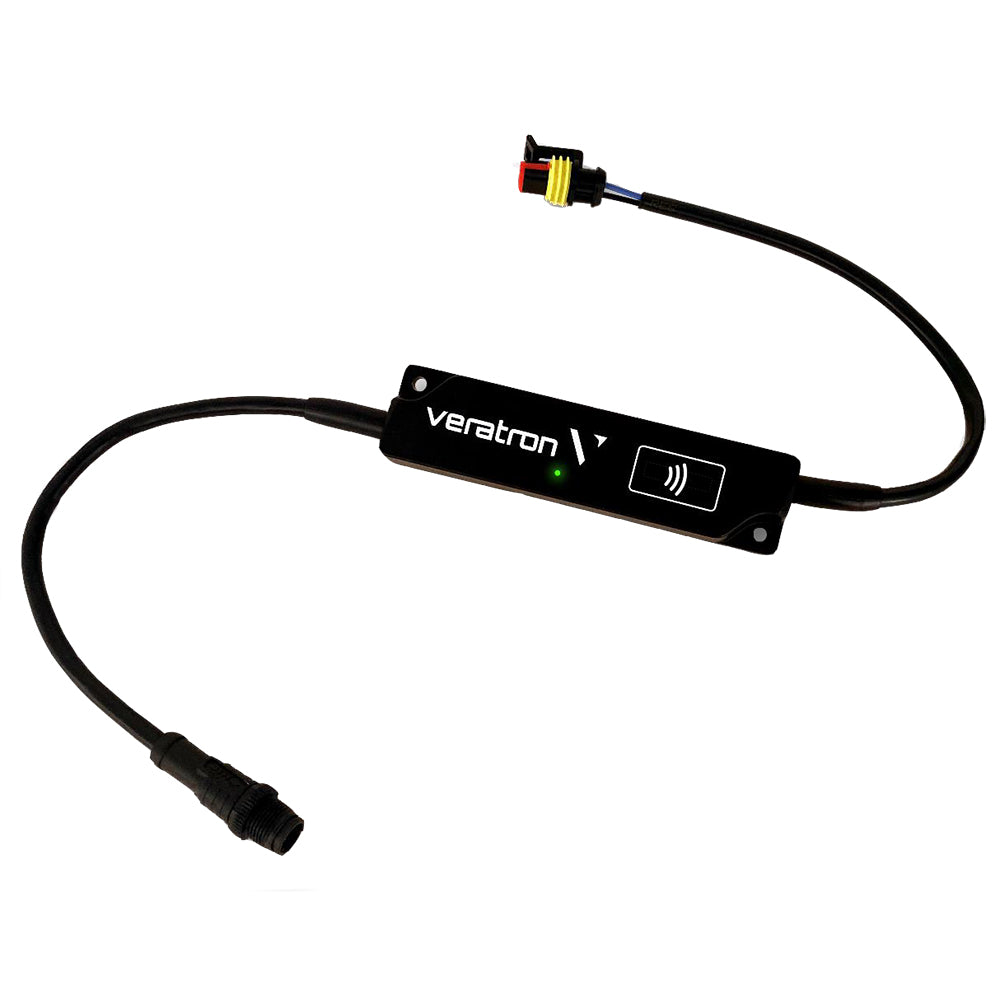

The resistive-type LinkUp gateway provides an easy method to convert vessel and engine information to NMEA 2000.
Easily installed, the LinkUp Gateway replaces the original wiring, delivering power to both the LinkUp device and sensor from the NMEA 2000 backbone while still being complaint with the NMEA 2000 certification requirements.
Configuring the LinkUp Gateway is simple using a mobile device and the companion LinkUp Configuration App for Android or IOS.
Each device has a built-in passive NFC antenna, so the parameters of the sensors are wirelessly configured to type, instance and warning threshold on the mobile device which is then "tapped" against the LinkUp device for instant data download.
Features:
User-friendly configuration through wireless interface and companion smartphone App
Sensor Cable length - 25cm
NMEA 2000 Cable length - 25 cm
Tap to download parameters
Mobile App for Android or IOS
No power required to program
No certification required
Bi-directional communication, programming interface or data recovery
Supported Sensors:
Fuel Level
Oil/Boost Pressure
Fresh/Waste Water Level
Oil/Gear Oil/Coolant Temperature
Trim Tabs
Rudder Angle
Technical Specifications:
Standard M12 NMEA 2000 plug
LED Notification
Operating Voltage - 6 - 16.5V
Nominal Voltage - 12 V (from NMEA 2000 network)
IPX7 Rated
Sensor Plug - Superseal Female 2 Pin
Counterpart Sensor Plug - - Superseal Male 2 Pin
*Sold as an Individual
This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Owner's Manual (pdf) Brochure (pdf)
